? Operating Parameters

Adjust the following parameters of the centrifuge to meet specific process requirements: Adjust the drum rotation speed to obtain the separation factor required for the separation effect. Adjust the differential speed between the drum and the screw and the overflow weir plate at the large end of the drum (i.e., adjust the liquid pool depth of the material in the drum) to achieve a balance between liquid clarity and mud cake dryness. Adjust the feed flow rate to change the residence time of the material in the centrifuge and improve the separation efficiency of the centrifuge.

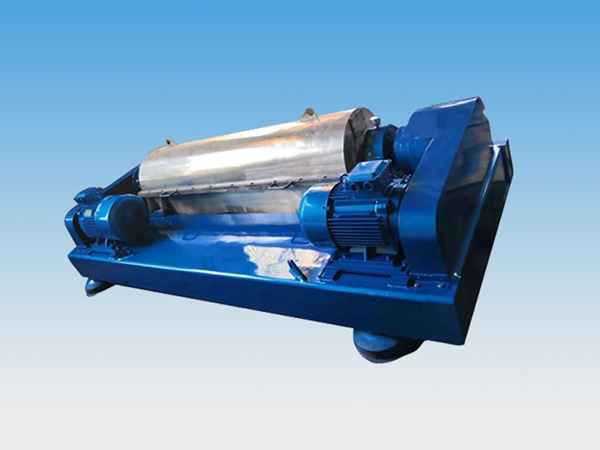

? Main Specifications and Technical Parameters of Three - Phase Horizontal Screw Centrifuge

Model	Drum diameter (mm)	Length-to-diameter ratio	Rotational speed	Drum length	Separation factor	Production capacity (m2/h)	Power of main and auxiliary motors (kw)	Weight (kg)	Overall dimensions (mm)
LWS355x1600	355	4.5	4200	1600	3600	2~4	15~7.5	2500	2980X1480X900
LWS400x1800	400	4.5	3900	1800	3500	4~6	22~11	3200	3200X1570X900
LWS450x2000	450	4.5	3700	2000	3450	6~8	37~15	4500	3660X1680X930
LWS500x2000	500	4	3500	2000	3430	8~10	45~18.5	4950	3600X1760X1060
LWS530x2120	530	4	3400	2120	3430	10~12	45~22	5200	4880X1265X1380
LWS550x2200	550	4	3200	2200	3160	12~14	45~22	5500	4980X1265X1380
LWS580x2320	580	4	2800	2320	2550	14~16	55~30	6200	5290X1295X1390

Note: The production capacity and slag discharge capacity are related to the material properties and separation requirements.
The materials to be separated by the three - phase centrifuge need to be heated to about 70°C.
